(완독정리) Cloud Computing Concepts, Technology & Architecture/ServiceTec

Cloud Infrastructure Mechanisms



Logical Network Primeter

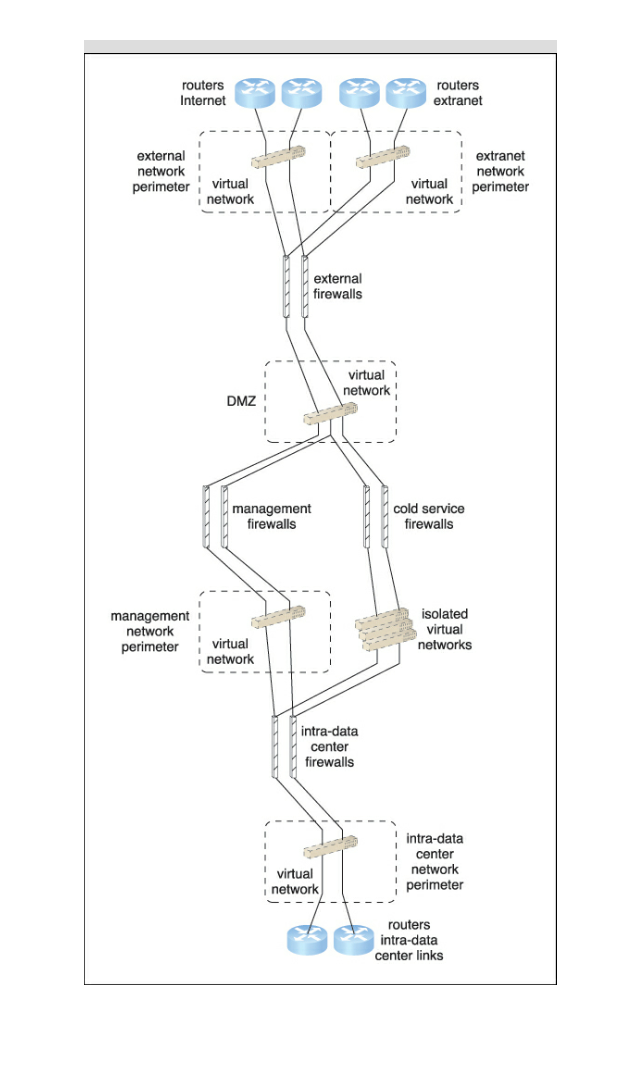

The routers that connect to the Internet and extranet are networked to external firewalls, which provide network control and protection to the furthest external network boundaries using virtual networks that logically abstract the external network and extranet perimeters. Devices connected to these network perimeters are loosely isolated and protected from external users. No cloud consumer IT resources are available within these perimeters.



- A logical network perimeter classified as a demilitarized zone (DMZ) is established between the external firewalls and its own firewalls. The DMZ is abstracted as a virtual network hosting the proxy servers (not shown in Figure 7.3) that intermediate access to commonly used network services (DNS, e-mail, Web portal), as well as Web servers with external management functions.

- The network traffic leaving the proxy servers passes through a set of management firewalls that isolate the management network perimeter, which hosts the servers providing the bulk of the management services that cloud consumers can externally access. These services are provided in direct support of self-service and on-demand allocation of cloud-based IT resources.

- All of the traffic to cloud-based IT resources flows through the DMZ to the cloud service firewalls that isolate every cloud consumer’s perimeter network, which is abstracted by a virtual network that is also isolated from other networks.

- Both the management perimeter and isolated virtual networks are connected to the intra-data center firewalls, which regulate the network traffic to and from the other DTGOV data centers that are also connected to intra-data center routers at the intra-data center network perimeter. The virtual firewalls are allocated to and controlled by a single cloud consumer in order to regulate its virtual IT resource traffic. These IT resources are connected through a virtual network that is isolated from other cloud consumers. The virtual firewall and the isolated virtual network jointly form the cloud consumer’s logical network perimeter.

Cloud Storage Device

The cloud consumer uses the usage and administration portal to create and assign a cloud storage device to an existing virtual server (1). The usage and administration portal interacts with the VIM software (2a), which creates and configures the appropriate LUN (2b). Each cloud storage device uses a separate LUN controlled by the virtualization platform. The cloud consumer remotely logs into the virtual server directly (3a) to access the cloud storage device (3b).

1



Cloud Usage Monitor

A monitoring agent is an intermediary, event-driven program that exists as a service agent and resides along existing communication paths to transparently monitor and analyze dataflows (Figure 7.12). This type of cloud usage monitor is commonly used to measure network traffic and message metrics.

A resource agent is a processing module that collects usage data by having event-driven interactions with specialized resource software (Figure 7.13). This module is used to monitor usage metrics based on pre-defined, observable events at the resource software level, such as initiating, suspending, resuming, and vertical scaling.



A polling agent is a processing module that collects cloud service usage data by polling IT resources. This type of cloud service monitor is commonly used to periodically monitor IT resource status, such as uptime and downtime

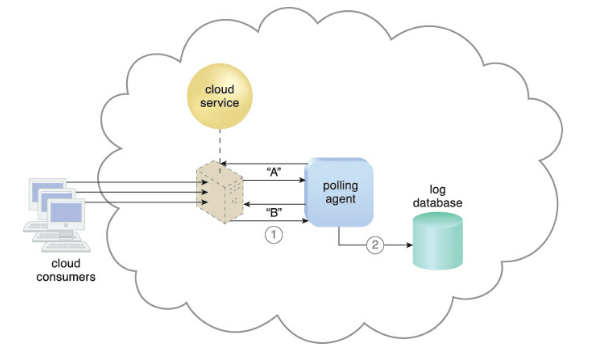

A polling agent monitors the status of a cloud service hosted by a virtual server by sending periodic polling request messages and receiving polling response messages that report usage status "A" after a number of polling cycles, until it receives a usage status of "B" (1), upon which the polling agent records the new usage status in the log database (2).







Specialized Cloud Mechanisms



Automated Scaling Listener

The automated scaling listener mechanism is a service agent that monitors and tracks communications between cloud service consumers and cloud services for dynamic scaling purposes. Automated scaling listeners are deployed within the cloud, typically near the firewall, from where they automatically track workload status information. Workloads can be determined by the volume of cloud consumer-generated requests or via back-end processing demands triggered by certain types of requests. For example, a small amount of incoming data can result in a large amount of processing.

Three cloud service consumers attempt to access one cloud service simultaneously (1). The automated scaling listener scales out and initiates the creation of three redundant instances of the service (2). A fourth cloud service consumer attempts to use the cloud service (3). Programmed to allow up to only three instances of the cloud service, the automated scaling listener rejects the fourth attempt and notifies the cloud consumer that the requested workload limit has been exceeded (4). The cloud consumer’s cloud resource administrator accesses the remote administration environment to adjust the provisioning setup and increase the redundant instance limit (5).



Load Balancer

Load balancers can perform a range of specialized runtime workload distribution functions that include :

• Asymmetric Distribution – larger workloads are issued to IT resources with higher processing capacities



• Workload Prioritization – workloads are scheduled, queued, discarded, and distributed workloads according to their priority levels



• Content-Aware Distribution – requests are distributed to different IT resources as dictated by the request content



The load balancer mechanisms can exist as a:

• multi-layer network switch

• dedicated hardware appliance

• dedicated software-based system (common in server operating systems)

• service agent (usually controlled by cloud management software)

SLA Monitor

The SLA monitor mechanism is used to specifically observe the runtime performance of cloud services to ensure that they are fulfilling the contractual QoS requirements that are published in SLAs

The SLA monitor polls the cloud service by sending over polling request messages (MREQ1 to MREQN). The monitor receives polling response messages (MREP1 to MREPN) that report that the service was "up" at each polling cycle (1a). The SLA monitor stores the "up" time-time period of all polling cycles 1 to N-in the log database (1b).
The SLA monitor polls the cloud service that sends polling request messages (MREQN+1 to MREQN+M). Polling response messages are not received (2a). The response messages continue to time out, so the SLA monitor stores the "down" time-time period of all polling cycles N+1 to N+M-in the log database (2b).
The SLA monitor sends a polling request message (MREQN+M+1) and receives the polling response message (MREPN+M+1) (3a). The SLA monitor stores the "up" time in the log database (3b).



Hashing

A hashing function is applied to protect the integrity of a message that is intercepted and altered by a malicious service agent, before it is forwarded. The firewall can be configured to determine that the message has been altered, thereby enabling it to reject the message before it can proceed to the cloud service.

Cloud Computing Architecture

Cloud Bursting Architecture

Cloud bursting is a flexible scaling architecture that provides cloud consumers with the option of using cloud-based IT resources only to meet higher usage demands.

An automated scaling listener monitors the usage of on-premise Service A, and redirects Service Consumer C’s request to Service A’s redundant implementation in the cloud (Cloud Service A) once Service A’s usage threshold has been exceeded (1). A resource replication system is used to keep state management databases synchronized (2).





Direct LUN Access Architecture

Storage LUNs are typically mapped via a host bus adapter (HBA) on the hypervisor, with the storage space emulated as file-based storage to virtual servers (Figure 13.4). However, virtual servers sometimes need direct access to RAW block-based storage.
